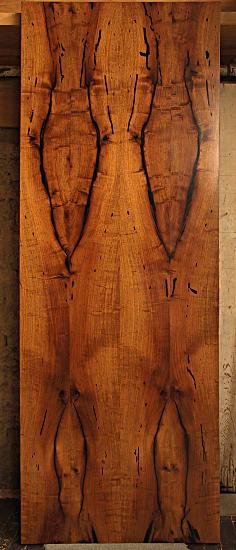

Mesquite Veneered Door

This door is 8 ' high x 35 " wide x 2 1/2" thick. The 1/8" thick veneer is made in my shop from a single plank that was only 2" thick and a little over 9" wide. The veneer on each side of the door is made into a 3'x8' sheet before applying to the built up core. The modified core is made from a 1 3/4" thick premium grade solid core door that has 1/4" MDF applied to both sides with West brand epoxy. The veneer is also glued on with epoxy and both sides are exactly the same. I use a vacuum bag veneer press made by Mercury Vacuum Presses. The sides, top and bottom have thick mesquite edge banding and the door appears to be made from four thick planks glued together.

Back to the main photo gallery

Mesquite veneered door
